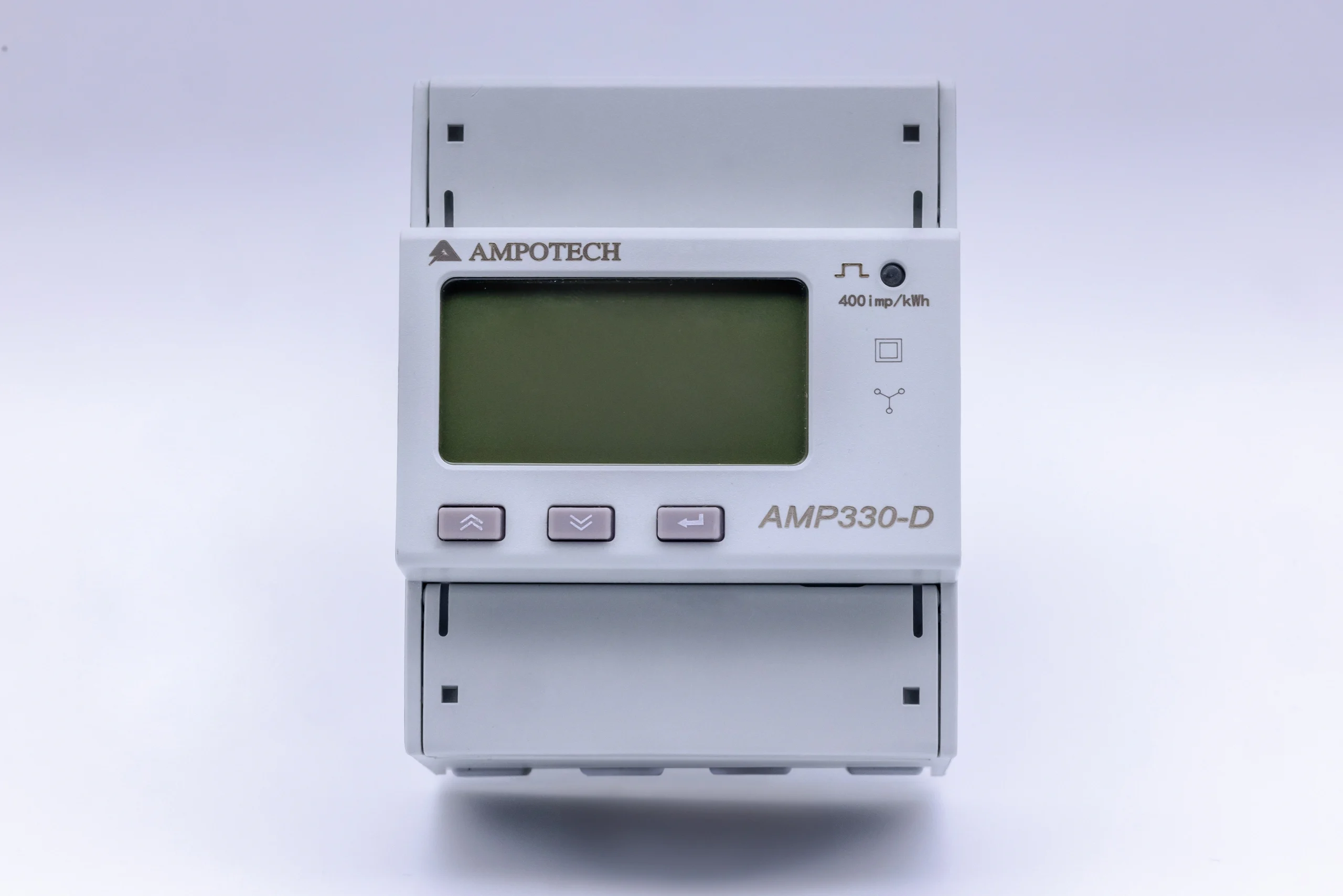

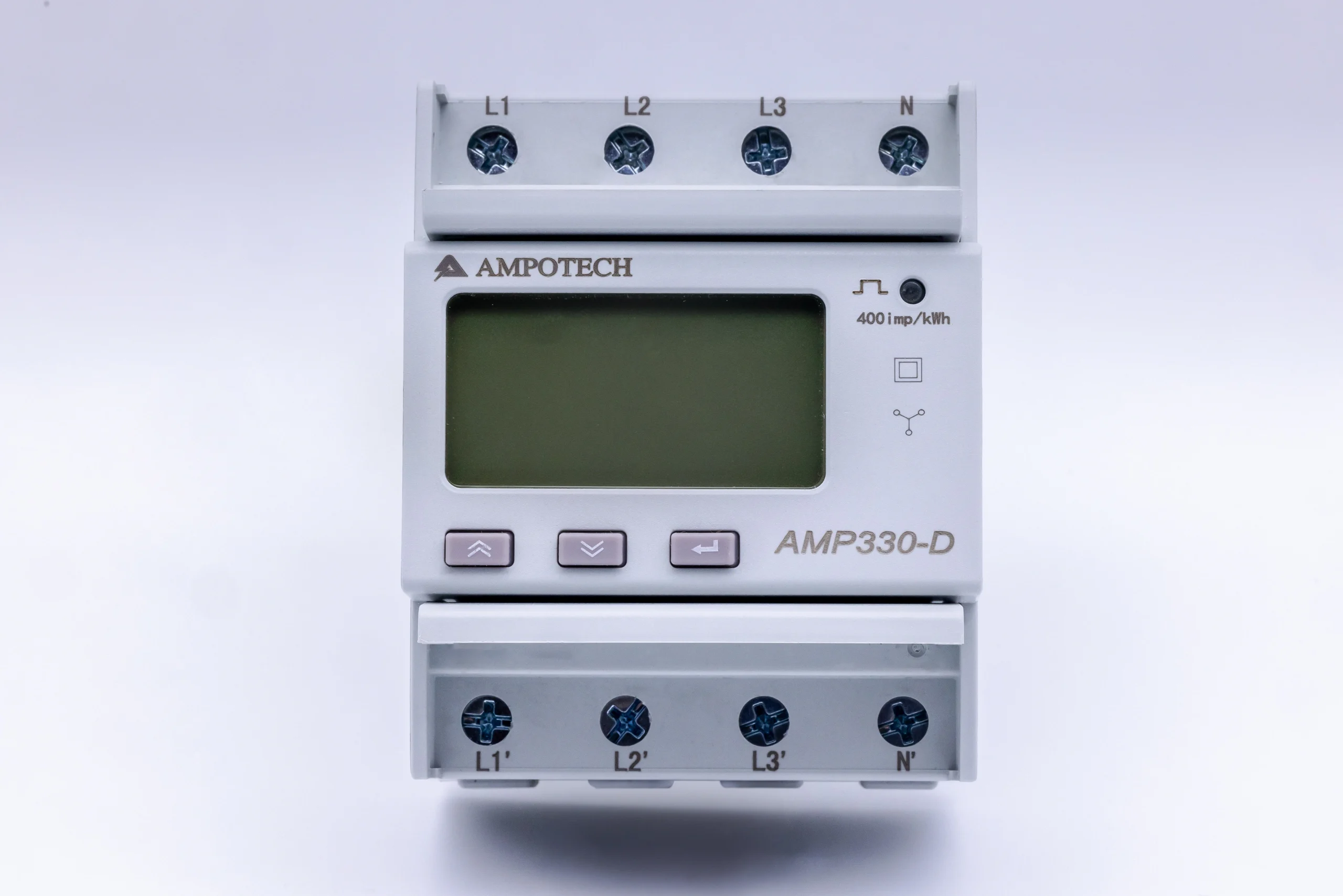

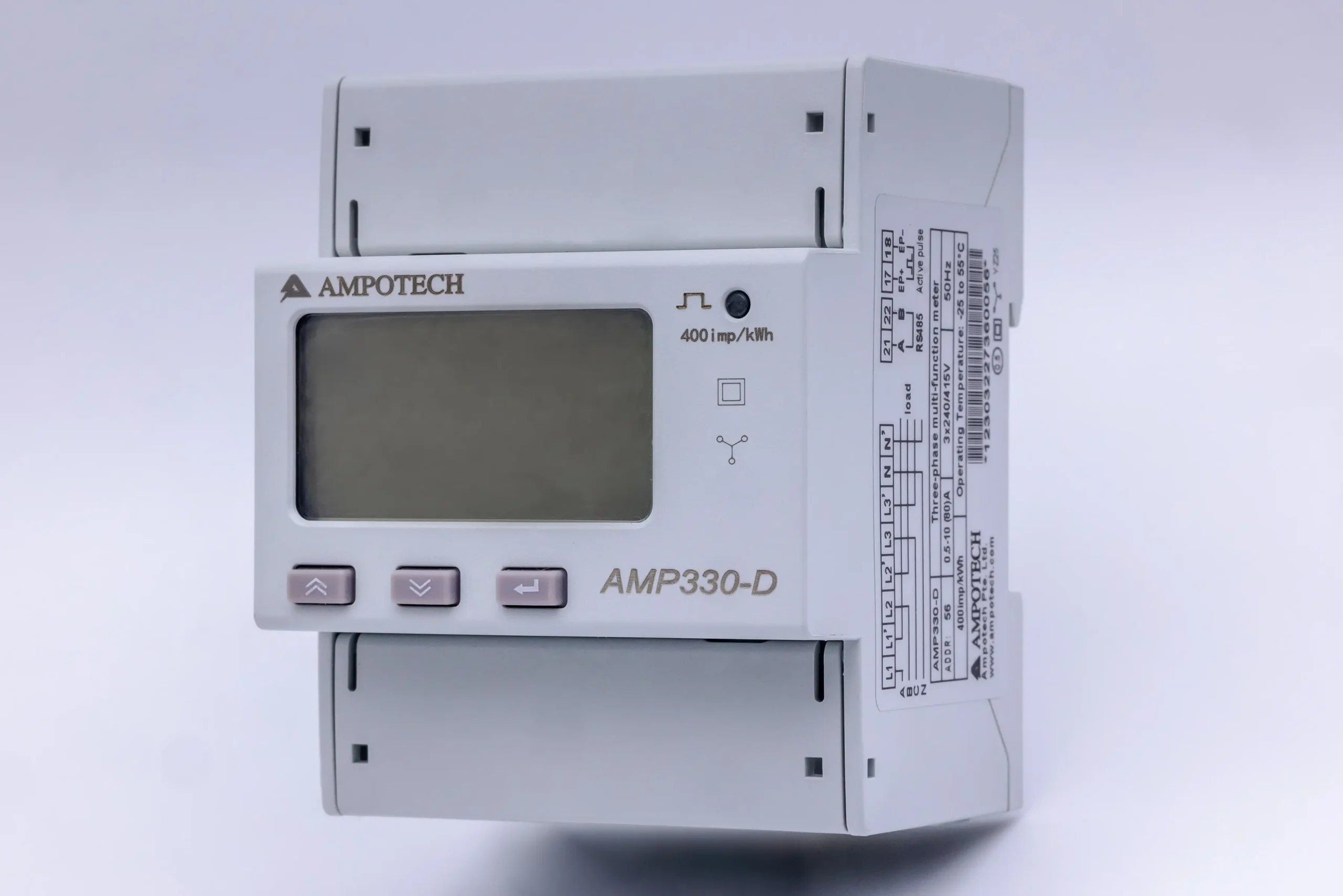

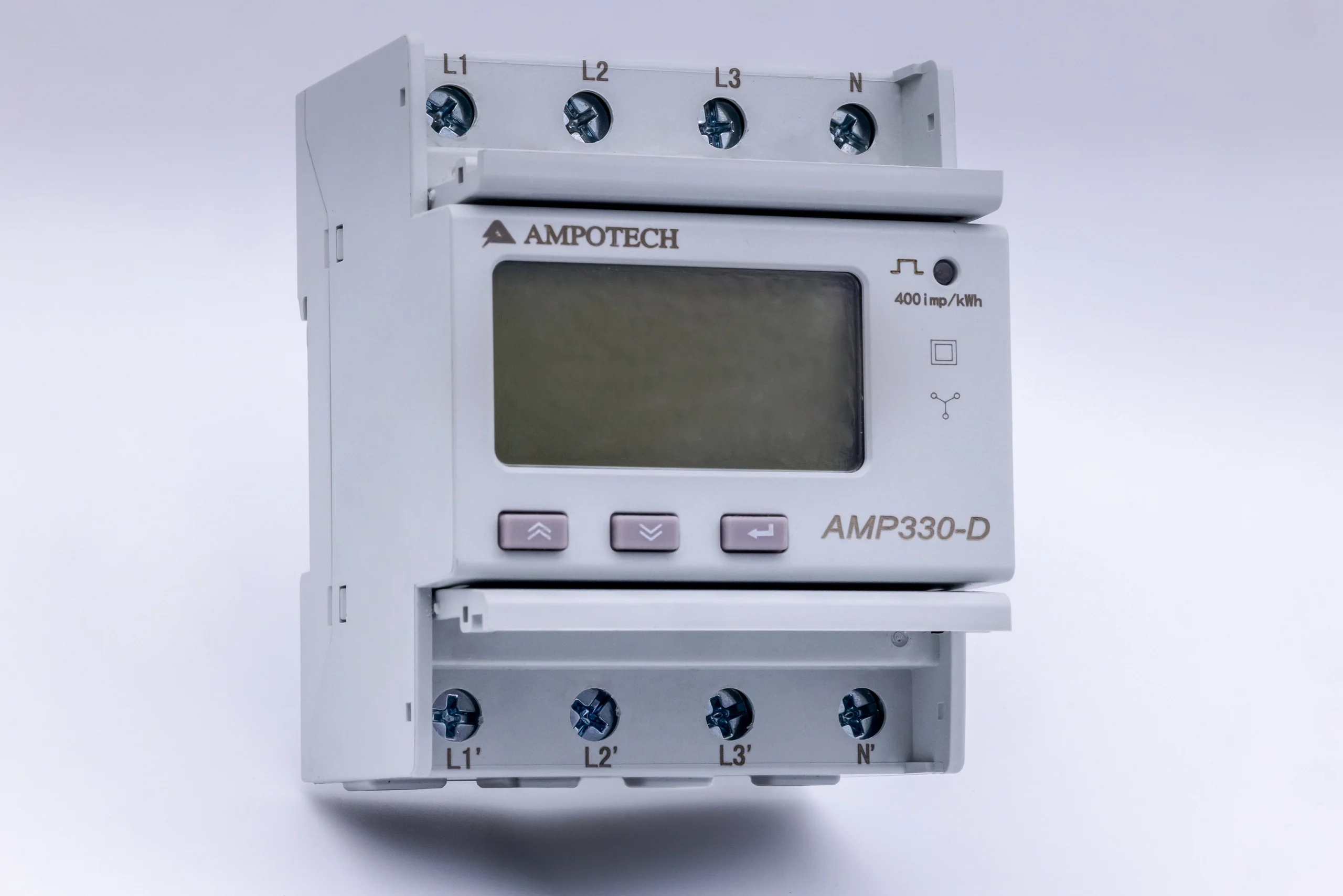

VIMetering: AMP330D
DIN-rail mounted three-phase electricity meters suitable for commercial and industrial applications.
Product overview
DIN-rail mounted three-phase electricity meters suitable for commercial and industrial applications. AMP330-D is designed for direct connection. device features a digital display, three function keys, and an RS485 communication interface supporting MODBUS-RTU . AMP330-D provides
comprehensive electrical parameter measurements for real and reactive power and comply with IEC 62053-21 standards for Class 0.5 accuracy.
Key Features
- Industrial-Grade
The AmpoMeter model AMP330 provides three-phrase metering with a liquid-crystal display and MODBUS-RTU communication, suitable for industrial control systems, building management systems, and utility applications. Rated IP20. - High Accuracy
AMP330 is certified for Class 0.5 accuracy under IEC 62053-21. - End-to-End System
The AmpoMeter works with AmpoCloud to provide energy use reporting, email and SMS alerts, data download, and API integration with 3rd party software platforms and tools.
Specifications
| Description | ||
|---|---|---|
| Dimensions (mm) | 90 (H) x 72 (W) x 65 (D) | |
| Working Temperature (C) | -22 to 55 | |
| Relative Humidity | ≤ 95% non-condensing | |
| Electrical Parameters | Current Voltage Energy Real Power Reactive Power Apparent Power Power Factor Frequency. |
|
| Measurement Accuracy | Active energy (positive and negative) [Class 0.5] Reactive energy (positive and negative) [Class 2] |
|
| Harmonics | 2-31st voltage and current harmonic | |
| Display | Liquid-crystal display (LCD) with background light | |
| Key Programming | 3 keys to set parameters (Up, Down, Enter) | |
| Pulse Output | Active pulse output | |
| Communication | RS-485 interface, MODBUS-RTU protocol | |
| Compliance Marks | CE | |
| Standards | IEC 62053-21 | |
| Protection Class | IP20 | |

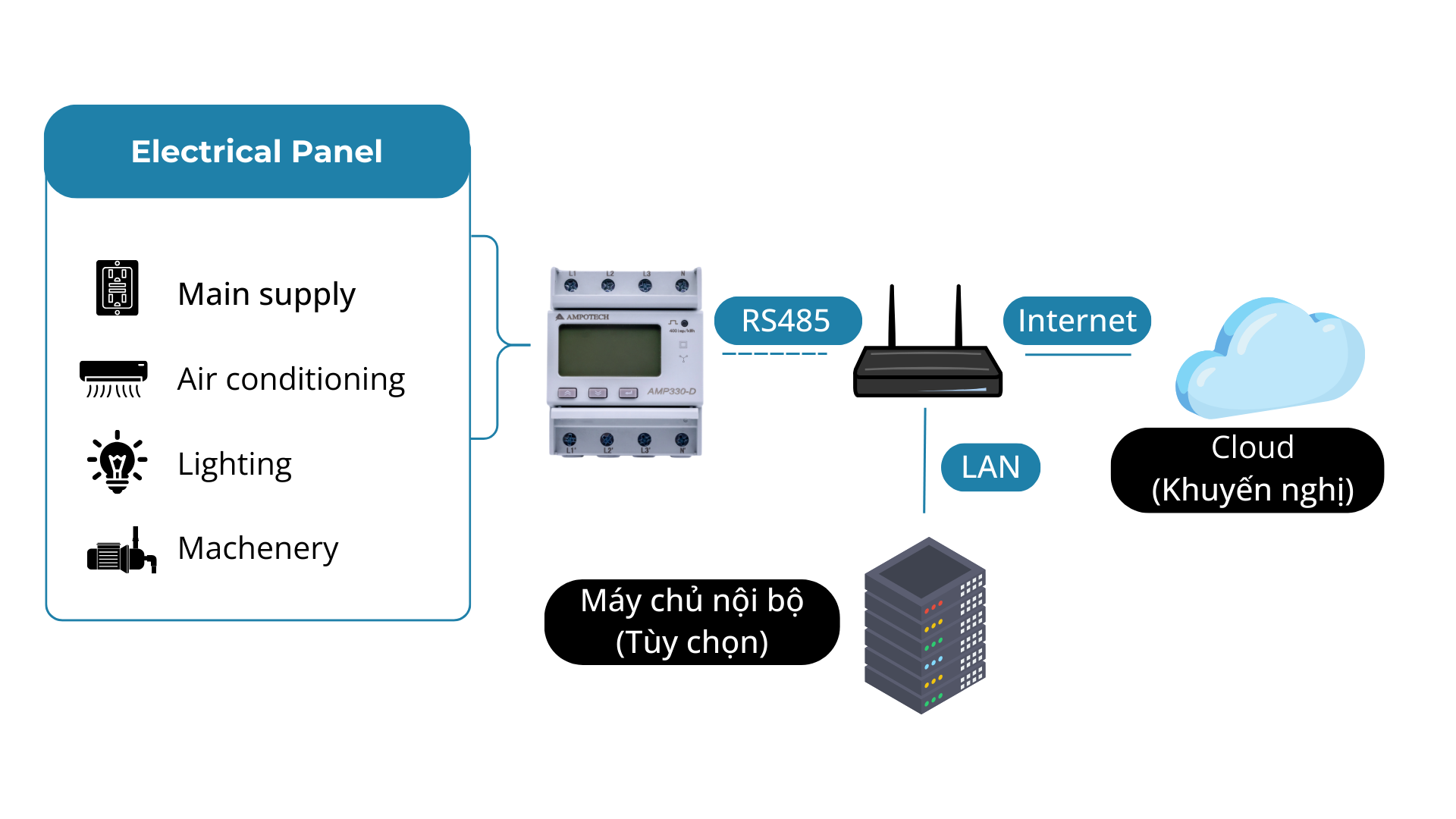

Schematic Diagram
