VIMetering: AmpoHub
A compact, wireless power meter and IoT gateway designed to streamline energy monitoring and optimize management systems.
Product overview

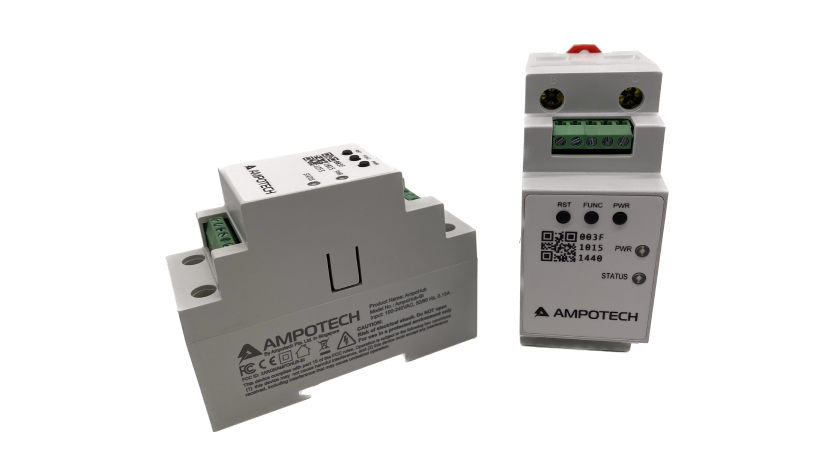

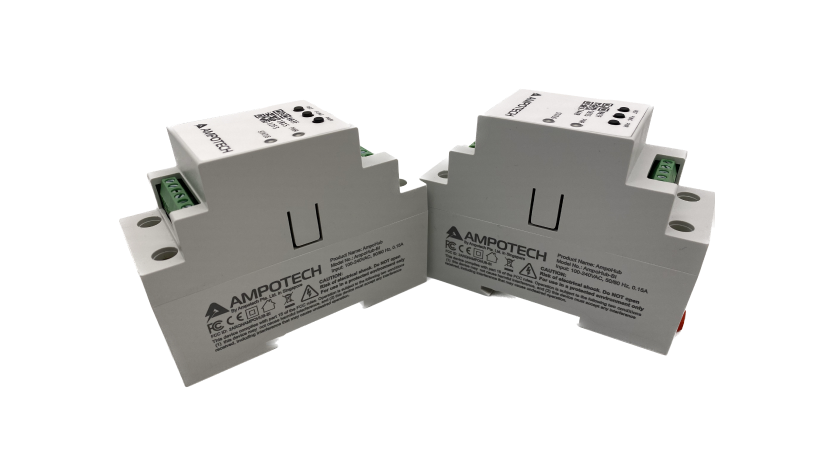

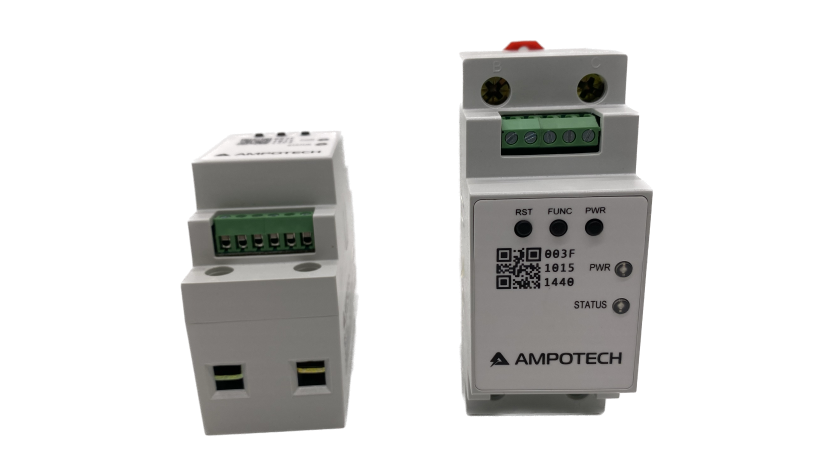

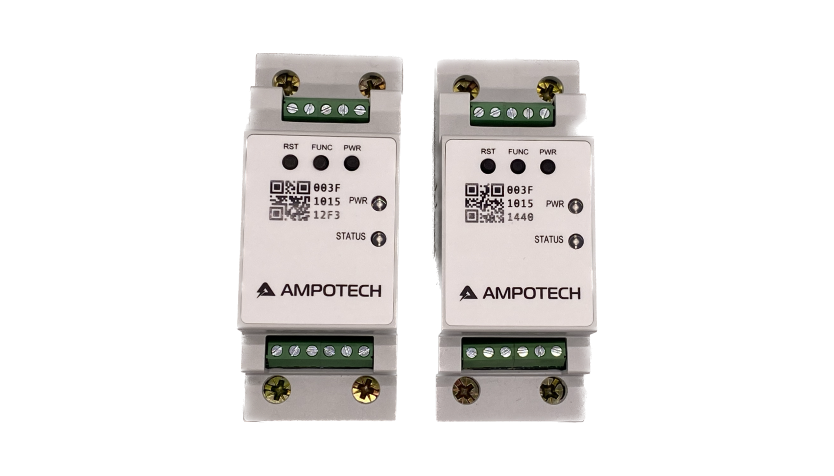

The AmpoHub is a compact, wireless-enabled power meter and IoT gateway. The device is installed in low-voltage electrical distribution panels and has three input channels for current transformer (CT) sensors and three inputs, allowing it to measure single-phrase or three-phrase power. The AmpoHub also has a built-in WiFi module and data logging capability and supports remote device management and troubleshooting through the AmpoCloud platform. With its small size, second-level data rate, and IEC 62053-21 Class 1 accuracy, AmpoHub is suitable for monitoring individual machines, or for metering use cases in residential, commercial, and industrial sites.
What can the AmpoHub monitor?
- Air conditioner
- Freezer
- Cold room
- Pump
- Fan
- Oven
- Air compressor
- Solar inverter
- F&B cooler/heater
- Wall outlet circuit (IT equipment)
- Lighting circuit (Indoor, outdoor)
Use Case
- Application-based uses in solar power monitoring and trip-detection.
- Equipment-specific power monitoring for motors, lighting and airconditioning.
- IoT-enable power monitoring in smart homes and industry 4.0 settings.
Specifications
| Number | ||
|---|---|---|
| Dimensions (mm) | 90 (H) x 36 (W) x 65 (D) | |
| Weight (kg) | 0.2kg [device] 0.54kg [box with device & standard CTs] | |
| Operating Tempurature (C) | -20 to 40 | |
| Humidity rating | 90% non-condensing | |
| Electrical | ||
|---|---|---|
| Power supply (V) | 100-240 [line-neutral | Hard limits: 85-265 Appropriate for three-phase systems up to 440V (ie., 254V line) |
| Power supply (A) | 0.15 | |
| Power supply (Hz) | 50/60 Range: 45-65 | |
| Humidity rating | <2W (at normal operating condition) | |
| Measurement | ||
|---|---|---|
| Number of channels | 3 current, 3 voltage | |
| Parameters Mesured (Each channel) | Current (A), Voltage (V) Power (kW), Energy (kWh), Power Factor (dimensionless), Frequency (Hz) | Support Bi-directional energy reading |
| Reporting Rate | Adjustable | |
| Default Reporting Rate | 0.2Hz (report every 5 sec | |
| Measurement Type | True RMS (8kHz sampling) | |
| Measurement accuracy | Active Power: Class 1 Reactive Power: Class 2 | |

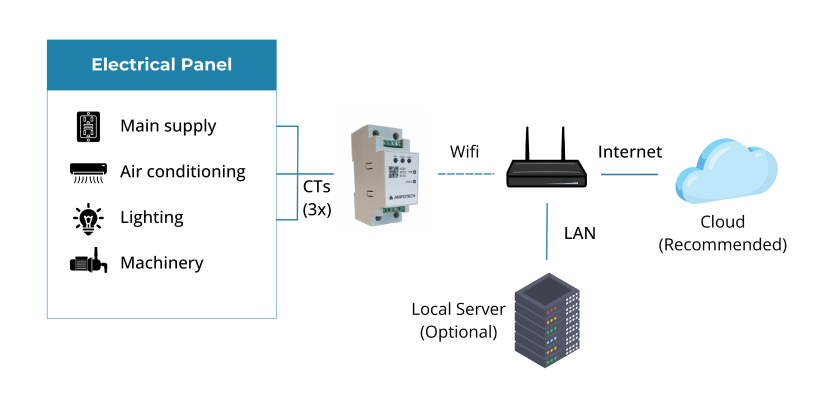

Schematic Diagram
